AGNS-RSD-3D14
14-inch radar speed display
Three-digit speed feedback with km/h and configurable driver messages.
For installations that need speed readings up to 199 km/h and messages such as THANK YOU or SLOW DOWN.

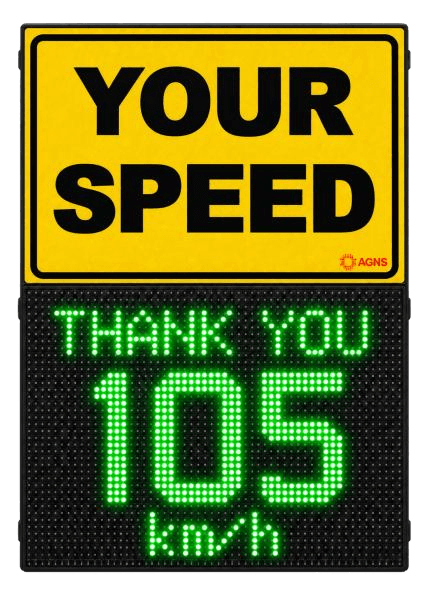

Product image shows an example configuration.
Technical details
Specifications.
| Speed display | 3 digits; readings up to 199 km/h |
|---|---|
| Digit height | Nominal 14 inches |
| Display area | 640 × 480 mm |
| Display content | Speed, km/h and configurable messages |
| Cabinet H × W × D | 900 × 640 × 115 mm |
| Operating ambient | −20 to +70°C |
| Radar technology | 24.125 GHz CW vehicle speed radar |
| Sensor measurement range | 1–240 km/h; display maximum varies by model |
| Manufacturer detection distance | ≥180 m; depends on target, alignment and site conditions |
| Sensor accuracy | Error <±1 km/h at 0° target alignment |
| Beam (3 dB) | 40° horizontal × 16° vertical |
| Sensor interfaces | RS485 / TTL serial, 9600 bps |
| AC input | 200–240 V AC, 47–63 Hz |
| LED supply | 5 V DC; reference SMPS NDA300HS5, 60 A / 300 W rated output |
| Radar supply | Separate regulated 9–24 V DC rail; module consumption ≤1.2 W |
| LED system | RGB dot matrix; red, amber and green indications; HUB75 interface |
| Cabinet construction | 1.2 mm mild steel with powder-coated finish |
| Enclosure options | IP65 or IP66, as specified for the supplied configuration |
| Net weight | Depends on the selected configuration |
| Mounting & warranty | Wall and pole mounting accessories included; one-year warranty |
